DH-1525 Electro-hydraulic clamps

Tools

• 360 swivel head opening and closing crimps

Product parameters

name	Electro-hydraulic clamps
Model	DH-1525
specification	• Ø16mm • Ø20mm • Ø25(26)mm • Ø 32mm
Crimping force	19KN
itinerary	30mm
Time/working hours	3～5s（Depends on the size of the specification）
Voltage/capacity	18V / 4.0Ah
Charging voltage	•AC 100V～240V •50～60HZ
Charging time	40 minutes
Ambient temperature	-10～40°C
Slip range	SV type、U type、 TH type、 VAU type
Tool features	1.360 swivel head, opening and closing crimping joint, suitable for working in any site. 2. The abrupt pause function can be controlled at any time, and even retracted manually. 3. According to ergonomic design, with non-slip handle. 4. Microcomputer control system, with self-pressure check "double protection during operation" counting function, through the inverter to achieve the exchange between the computer and data. 5. High-performance lithium-ion battery, providing stronger power "no discharge memory effect" can be effectively crimped 200 times on a single charge.

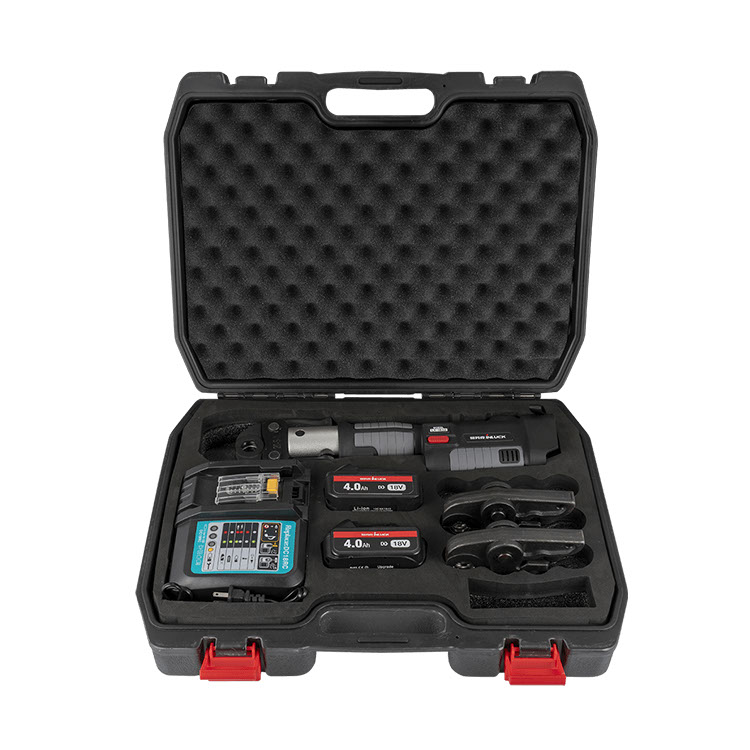

wrap	Plastic box
battery	2set
charger	1set
weight	11kg（Batteries and head included）
